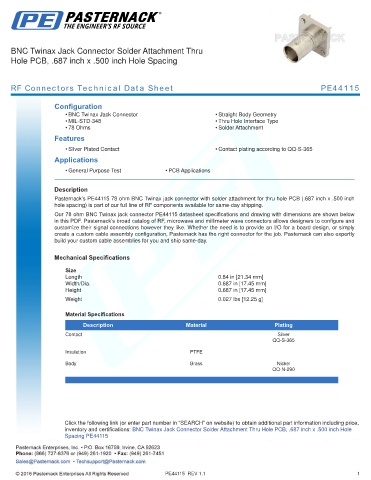

BNC Twinax Jack Connector Solder Attachment Thru
Hole PCB, .687 inch x .500 inch Hole Spacing

RF Connectors Technical Data Sheet PE44115

Configuration
• BNC Twinax Jack Connector • Straight Body Geometry
• MIL-STD-348 • Thru Hole Interface Type
• 78 Ohms • Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44115 78 ohm BNC Twinax jack connector with solder attachment for thru hole PCB (.687 inch x .500 inch
hole spacing) is part of our full line of RF components available for same-day shipping.
Our 78 ohm BNC Twinax jack connector PE44115 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.84 in [21.34 mm]
Width/Dia. 0.687 in [17.45 mm]
Height 0.687 in [17.45 mm]
.
Weight 0.027 lbs [12.25 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Jack Connector Solder Attachment Thru Hole PCB, .687 inch x .500 inch Hole
Spacing PE44115

PE44115 REV 1.1 1
