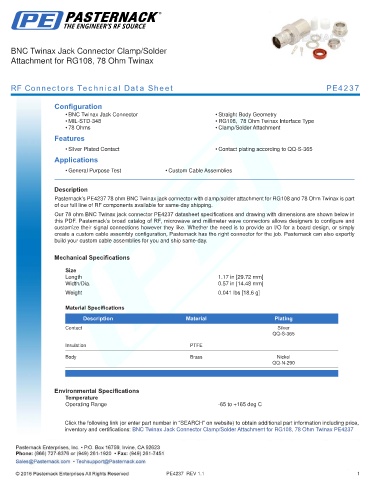

BNC Twinax Jack Connector Clamp/Solder
Attachment for RG108, 78 Ohm Twinax

RF Connectors Technical Data Sheet PE4237

Configuration
• BNC Twinax Jack Connector • Straight Body Geometry
• MIL-STD-348 • RG108, 78 Ohm Twinax Interface Type
• 78 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4237 78 ohm BNC Twinax jack connector with clamp/solder attachment for RG108 and 78 Ohm Twinax is part
of our full line of RF components available for same-day shipping.
Our 78 ohm BNC Twinax jack connector PE4237 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.17 in [29.72 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Jack Connector Clamp/Solder Attachment for RG108, 78 Ohm Twinax PE4237

PE4237 REV 1.1 1
