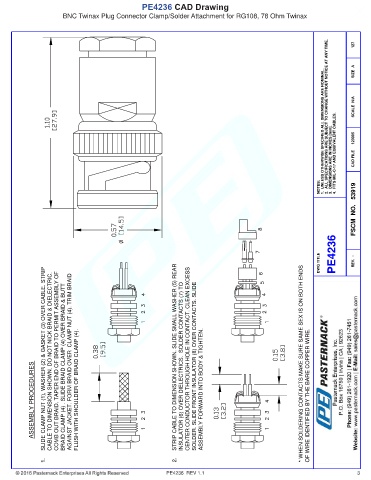

PE4236 CAD Drawing
BNC Twinax Plug Connector Clamp/Solder Attachment for RG108, 78 Ohm Twinax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 123005 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4236 REV. -

ASSEMBLY PROCEDURES SLIDE CLAMP NUT (1), WASHER (2) & GASKET (3) OVER CABLE. STRIP CABLE TO DIMENSION SHOWN. DO NOT NICK BRAID & DIELECTRIC. COMB OUT BRAID. TAPER END OF BRAID TO PERMIT ASSEMBLY OF BRAID CLAMP (4) . SLIDE BRAID CLAMP (4) OVER BRAID & BUTT AGAINST JACKET. FORM BRAID OVER CLAMP NUT (4). TRIM BRAID FLUSH WITH SHOULDER OF BRAID CLAMP (4). STRIP CABLE TO DIMENSION SHOWN. SLIDE SMALL WASHER (5) REAR INSULATOR (6) OVER DIELECTRICS. SOLDER CONTACTS (7) TO CENT

1. 2.

PE4236 REV 1.1 3
