BNC Twinax Plug Connector Clamp/Solder
Attachment for RG108, 78 Ohm Twinax

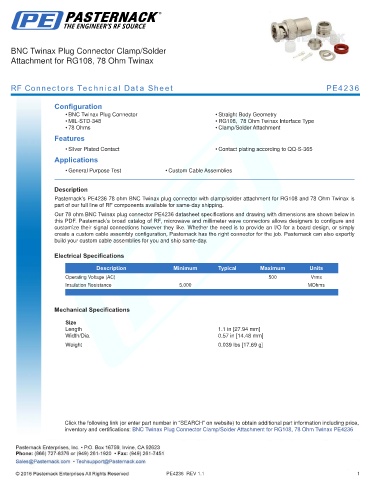

RF Connectors Technical Data Sheet PE4236

Configuration
• BNC Twinax Plug Connector • Straight Body Geometry
• MIL-STD-348 • RG108, 78 Ohm Twinax Interface Type
• 78 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4236 78 ohm BNC Twinax plug connector with clamp/solder attachment for RG108 and 78 Ohm Twinax is
part of our full line of RF components available for same-day shipping.
Our 78 ohm BNC Twinax plug connector PE4236 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Operating Voltage (AC) 500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.1 in [27.94 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.039 lbs [17.69 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Plug Connector Clamp/Solder Attachment for RG108, 78 Ohm Twinax PE4236

PE4236 REV 1.1 1
