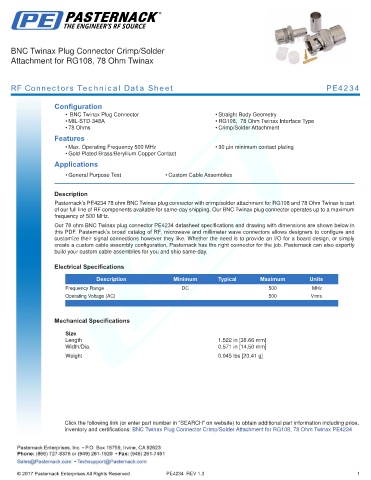

BNC Twinax Plug Connector Crimp/Solder
Attachment for RG108, 78 Ohm Twinax

RF Connectors Technical Data Sheet PE4234

Configuration
• BNC Twinax Plug Connector • Straight Body Geometry
• MIL-STD-348A • RG108, 78 Ohm Twinax Interface Type
• 78 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 500 MHz • 30 µin minimum contact plating
• Gold Plated Brass/Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4234 78 ohm BNC Twinax plug connector with crimp/solder attachment for RG108 and 78 Ohm Twinax is part
of our full line of RF components available for same-day shipping. Our BNC Twinax plug connector operates up to a maximum
frequency of 500 MHz.
Our 78 ohm BNC Twinax plug connector PE4234 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.522 in [38.66 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.045 lbs [20.41 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Plug Connector Crimp/Solder Attachment for RG108, 78 Ohm Twinax PE4234

PE4234 REV 1.3 1
