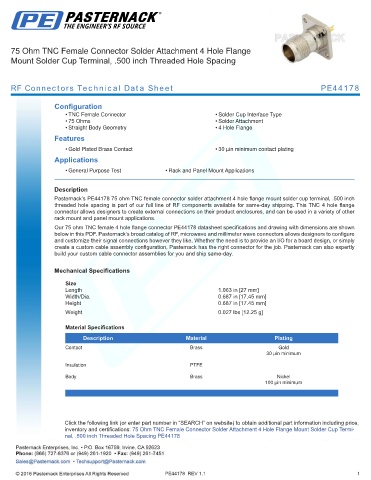

75 Ohm TNC Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing

RF Connectors Technical Data Sheet PE44178

Configuration
• TNC Female Connector • Solder Cup Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44178 75 ohm TNC female connector solder attachment 4 hole flange mount solder cup terminal, .500 inch
threaded hole spacing is part of our full line of RF components available for same-day shipping. This TNC 4 hole flange
connector allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications.
Our 75 ohm TNC female 4 hole flange connector PE44178 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.063 in [27 mm]
Width/Dia. 0.687 in [17.45 mm]
Height 0.687 in [17.45 mm]
.
Weight 0.027 lbs [12.25 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Termi-
nal, .500 inch Threaded Hole Spacing PE44178

PE44178 REV 1.1 1
