75 Ohm TNC Female Bulkhead Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .480 inch D Hole

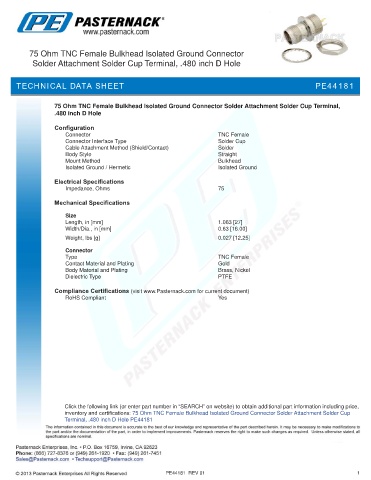

TECHNICAL DATA SHEET PE44181

75 Ohm TNC Female Bulkhead Isolated Ground Connector Solder Attachment Solder Cup Terminal,
.480 inch D Hole

Configuration
Connector TNC Female
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead
Isolated Ground / Hermetic Isolated Ground

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.063 [27]
Width/Dia., in [mm] 0.63 [16.00]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type TNC Female
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female Bulkhead Isolated Ground Connector Solder Attachment Solder Cup
Terminal, .480 inch D Hole PE44181

PE44181 REV 01 1
