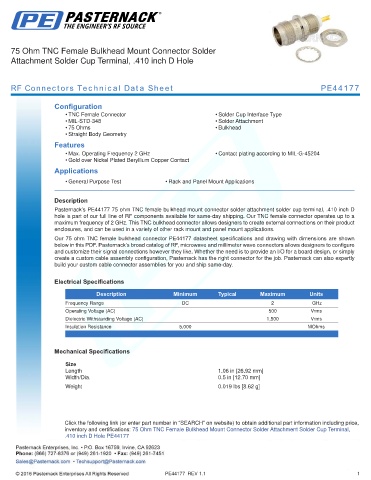

75 Ohm TNC Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .410 inch D Hole

RF Connectors Technical Data Sheet PE44177

Configuration
• TNC Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 75 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 2 GHz • Contact plating according to MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44177 75 ohm TNC female bulkhead mount connector solder attachment solder cup terminal, .410 inch D
hole is part of our full line of RF components available for same-day shipping. Our TNC female connector operates up to a
maximum frequency of 2 GHz. This TNC bulkhead connector allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm TNC female bulkhead connector PE44177 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications
Size
Length 1.06 in [26.92 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.019 lbs [8.62 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal,
.410 inch D Hole PE44177

PE44177 REV 1.1 1
