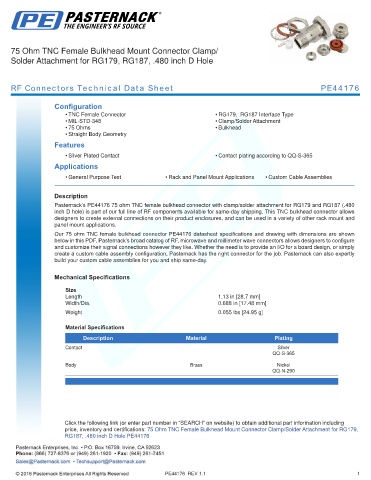

75 Ohm TNC Female Bulkhead Mount Connector Clamp/
Solder Attachment for RG179, RG187, .480 inch D Hole

RF Connectors Technical Data Sheet PE44176

Configuration
• TNC Female Connector • RG179, RG187 Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 75 Ohms • Bulkhead
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44176 75 ohm TNC female bulkhead connector with clamp/solder attachment for RG179 and RG187 (.480
inch D hole) is part of our full line of RF components available for same-day shipping. This TNC bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our 75 ohm TNC female bulkhead connector PE44176 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.13 in [28.7 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm TNC Female Bulkhead Mount Connector Clamp/Solder Attachment for RG179,
RG187, .480 inch D Hole PE44176

PE44176 REV 1.1 1
