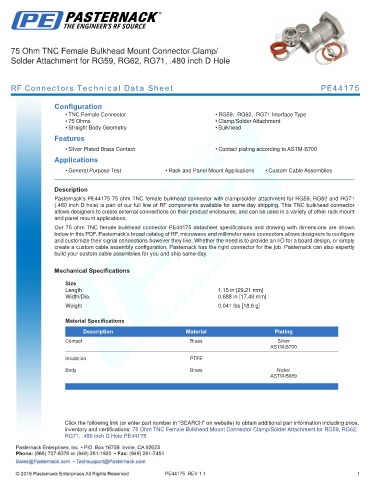

75 Ohm TNC Female Bulkhead Mount Connector Clamp/
Solder Attachment for RG59, RG62, RG71, .480 inch D Hole

RF Connectors Technical Data Sheet PE44175

Configuration
• TNC Female Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Clamp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Silver Plated Brass Contact • Contact plating according to ASTM-B700
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44175 75 ohm TNC female bulkhead connector with clamp/solder attachment for RG59, RG62 and RG71
(.480 inch D hole) is part of our full line of RF components available for same-day shipping. This TNC bulkhead connector
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
Our 75 ohm TNC female bulkhead connector PE44175 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.15 in [29.21 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications

Description Material Plating
Contact Brass Silver
ASTM-B700
Insulation PTFE

Body Brass Nickel
ASTM-B689
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female Bulkhead Mount Connector Clamp/Solder Attachment for RG59, RG62,
RG71, .480 inch D Hole PE44175

PE44175 REV 1.1 1
