75 Ohm TNC Female Bulkhead Connector Clamp/Solder
Attachment For RG11, RG216, .480 inch D Hole

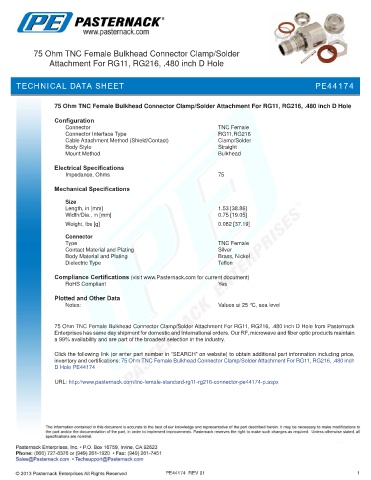

TECHNICAL DATA SHEET PE44174

75 Ohm TNC Female Bulkhead Connector Clamp/Solder Attachment For RG11, RG216, .480 inch D Hole

Configuration
Connector TNC Female
Connector Interface Type RG11,RG216
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.53 [38.86]
Width/Dia., in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.082 [37.19]
Connector
Type TNC Female
Contact Material and Plating Silver
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm TNC Female Bulkhead Connector Clamp/Solder Attachment For RG11, RG216, .480 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female Bulkhead Connector Clamp/Solder Attachment For RG11, RG216, .480 inch
D Hole PE44174

URL: http://www.pasternack.com/tnc-female-standard-rg11-rg216-connector-pe44174-p.aspx

PE44174 REV 01 1
