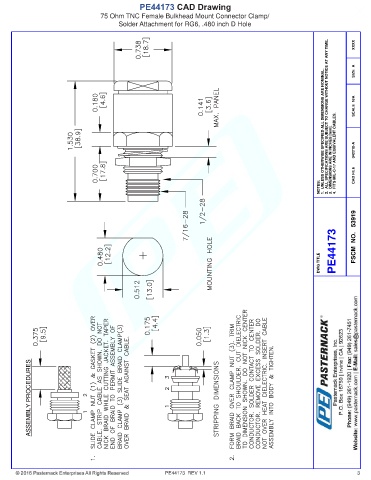

PE44173 CAD Drawing
75 Ohm TNC Female Bulkhead Mount Connector Clamp/
Solder Attachment for RG6, .480 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042210-A

NOTES: CAD FILE

PE44173 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES

PE44173 REV 1.1 3
