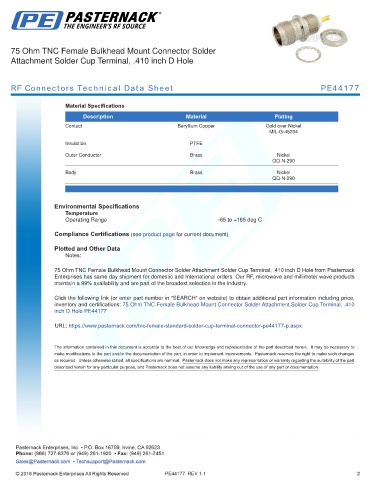

75 Ohm TNC Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .410 inch D Hole
RF Connectors Technical Data Sheet PE44177
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
MIL-G-45204
Insulation PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
75 Ohm TNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .410 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .410
inch D Hole PE44177
URL: https://www.pasternack.com/tnc-female-standard-solder-cup-terminal-connector-pe44177-p.aspx
