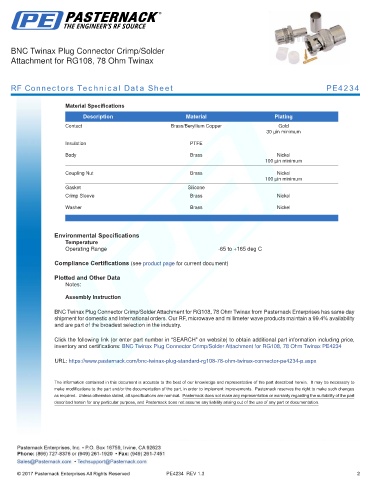

BNC Twinax Plug Connector Crimp/Solder
Attachment for RG108, 78 Ohm Twinax

RF Connectors Technical Data Sheet PE4234

Material Specifications
Description Material Plating
Contact Brass/Beryllium Copper Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
Gasket Silicone
Crimp Sleeve Brass Nickel
Washer Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Assembly Instruction

BNC Twinax Plug Connector Crimp/Solder Attachment for RG108, 78 Ohm Twinax from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Plug Connector Crimp/Solder Attachment for RG108, 78 Ohm Twinax PE4234

URL: https://www.pasternack.com/bnc-twinax-plug-standard-rg108-78-ohm-twinax-connector-pe4234-p.aspx

PE4234 REV 1.3 2
