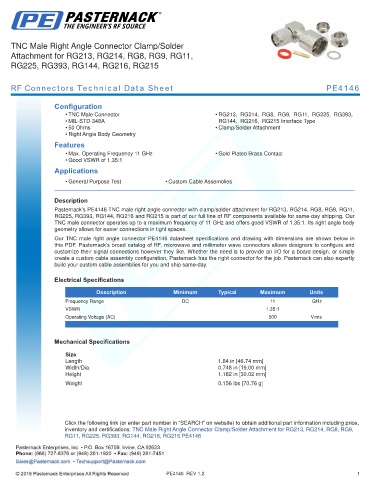

TNC Male Right Angle Connector Clamp/Solder
Attachment for RG213, RG214, RG8, RG9, RG11,
RG225, RG393, RG144, RG216, RG215

RF Connectors Technical Data Sheet PE4146

Configuration
• TNC Male Connector • RG213, RG214, RG8, RG9, RG11, RG225, RG393,
• MIL-STD-348A RG144, RG216, RG215 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4146 TNC male right angle connector with clamp/solder attachment for RG213, RG214, RG8, RG9, RG11,
RG225, RG393, RG144, RG216 and RG215 is part of our full line of RF components available for same-day shipping. Our
TNC male connector operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.35:1. Its right angle body
geometry allows for easier connections in tight spaces.
Our TNC male right angle connector PE4146 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.84 in [46.74 mm]
Width/Dia. 0.748 in [19.00 mm]
Height 1.182 in [30.02 mm]
.
Weight 0.156 lbs [70.76 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9,
RG11, RG225, RG393, RG144, RG216, RG215 PE4146

PE4146 REV 1.2 1
