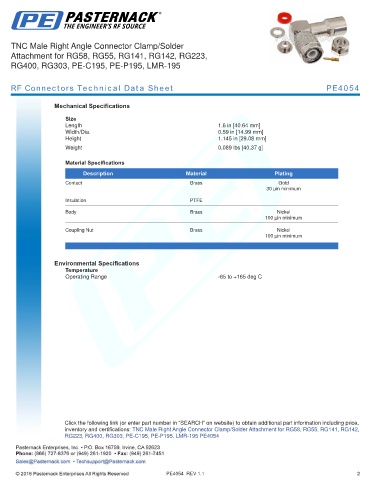

TNC Male Right Angle Connector Clamp/Solder
Attachment for RG58, RG55, RG141, RG142, RG223,
RG400, RG303, PE-C195, PE-P195, LMR-195

RF Connectors Technical Data Sheet PE4054

Mechanical Specifications

Size
Length 1.6 in [40.64 mm]
Width/Dia. 0.59 in [14.99 mm]
Height 1.145 in [29.08 mm]
.
Weight 0.089 lbs [40.37 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142,
RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 PE4054

PE4054 REV 1.1 2
