TNC Male Right Angle Connector Crimp/Solder
Attachment for RG188-DS, RG316-DS

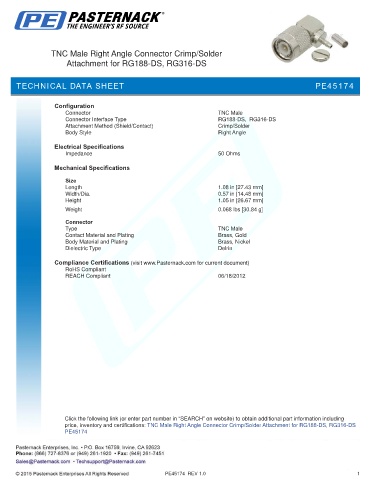

TECHNICAL DATA SHEET PE45174

Configuration
Connector TNC Male
Connector Interface Type RG188-DS, RG316-DS
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Right Angle

Electrical Specifications
Impedance 50 Ohms

Mechanical Specifications
Size
Length 1.08 in [27.43 mm]
Width/Dia. 0.57 in [14.48 mm]
Height 1.05 in [26.67 mm]
.
Weight 0.068 lbs [30.84 g]
Connector
Type TNC Male
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Delrin

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Male Right Angle Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
PE45174

PE45174 REV 1.0 1
