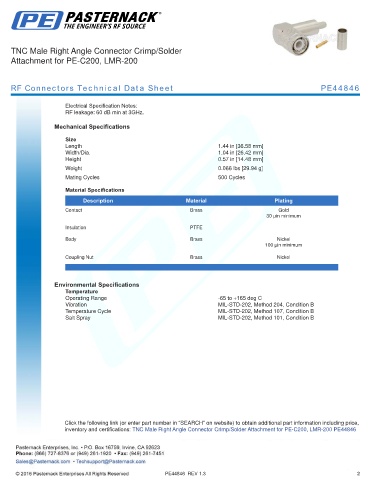

TNC Male Right Angle Connector Crimp/Solder
Attachment for PE-C200, LMR-200
RF Connectors Technical Data Sheet PE44846
Electrical Specification Notes:
RF leakage: 60 dB min at 3GHz.
Mechanical Specifications
Size
Length 1.44 in [36.58 mm]
Width/Dia. 1.04 in [26.42 mm]
Height 0.57 in [14.48 mm]
.
Weight 0.066 lbs [29.94 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
Coupling Nut Brass Nickel
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Vibration MIL-STD-202, Method 204, Condition B
Temperature Cycle MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Crimp/Solder Attachment for PE-C200, LMR-200 PE44846
PE44846 REV 1.3 2
