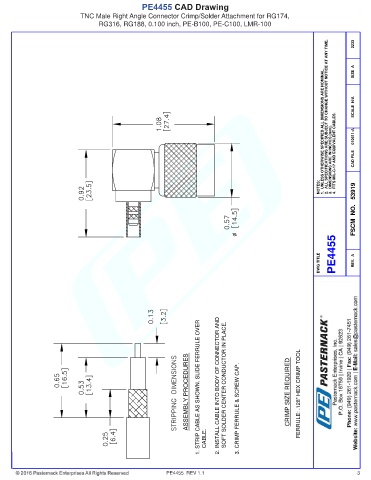

PE4455 CAD Drawing
TNC Male Right Angle Connector Crimp/Solder Attachment for RG174,
RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 010511-A CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4455 REV. A
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. SLIDE FERRULE OVER 2. INSTALL CABLE INTO BODY OF CONNECTOR AND SOFT SOLDER CENTER CONDUCTOR IN PLACE. 3. CRIMP FERRULE & SCREW CAP. CRIMP SIZE REQUIRED FERRULE: .128" HEX CRIMP TOOL
CABLE.
