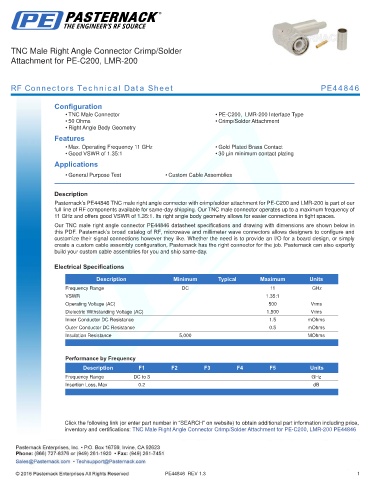

TNC Male Right Angle Connector Crimp/Solder
Attachment for PE-C200, LMR-200

RF Connectors Technical Data Sheet PE44846

Configuration
• TNC Male Connector • PE-C200, LMR-200 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44846 TNC male right angle connector with crimp/solder attachment for PE-C200 and LMR-200 is part of our
full line of RF components available for same-day shipping. Our TNC male connector operates up to a maximum frequency of
11 GHz and offers good VSWR of 1.35:1. Its right angle body geometry allows for easier connections in tight spaces.
Our TNC male right angle connector PE44846 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 0.5 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 GHz
Insertion Loss, Max 0.2 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Crimp/Solder Attachment for PE-C200, LMR-200 PE44846

PE44846 REV 1.3 1
