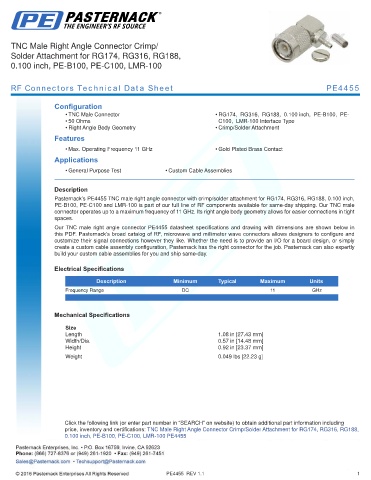

TNC Male Right Angle Connector Crimp/
Solder Attachment for RG174, RG316, RG188,
0.100 inch, PE-B100, PE-C100, LMR-100

RF Connectors Technical Data Sheet PE4455

Configuration
• TNC Male Connector • RG174, RG316, RG188, 0.100 inch, PE-B100, PE-
• 50 Ohms C100, LMR-100 Interface Type
• Right Angle Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4455 TNC male right angle connector with crimp/solder attachment for RG174, RG316, RG188, 0.100 inch,
PE-B100, PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping. Our TNC male
connector operates up to a maximum frequency of 11 GHz. Its right angle body geometry allows for easier connections in tight
spaces.
Our TNC male right angle connector PE4455 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.08 in [27.43 mm]
Width/Dia. 0.57 in [14.48 mm]
Height 0.92 in [23.37 mm]
.
Weight 0.049 lbs [22.23 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Male Right Angle Connector Crimp/Solder Attachment for RG174, RG316, RG188,
0.100 inch, PE-B100, PE-C100, LMR-100 PE4455

PE4455 REV 1.1 1
