TNC Male Right Angle Connector Crimp/Solder
Attachment For RG8X, PE-C240, 0.240 inch

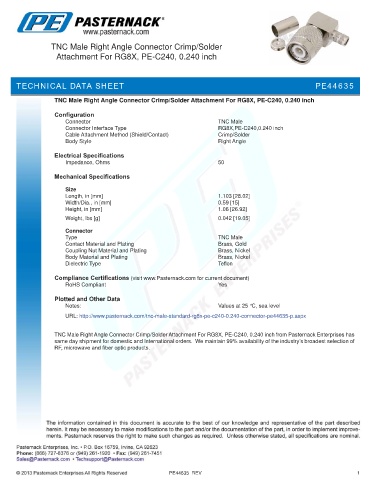

TECHNICAL DATA SHEET PE44635

TNC Male Right Angle Connector Crimp/Solder Attachment For RG8X, PE-C240, 0.240 inch

Configuration
Connector TNC Male
Connector Interface Type RG8X,PE-C240,0.240 inch
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Right Angle

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.103 [28.02]
Width/Dia., in [mm] 0.59 [15]
Height, in [mm] 1.06 [26.92]
.
Weight, lbs [g] 0.042 [19.05]
Connector
Type TNC Male
Contact Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/tnc-male-standard-rg8x-pe-c240-0.240-connector-pe44635-p.aspx

TNC Male Right Angle Connector Crimp/Solder Attachment For RG8X, PE-C240, 0.240 inch from Pasternack Enterprises has
same day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of
RF, microwave and fiber optic products.

PE44635 REV 1
