TNC Male Right Angle Connector Clamp/
Solder Attachment for PE-P160LL
RF Connectors Technical Data Sheet PE45445

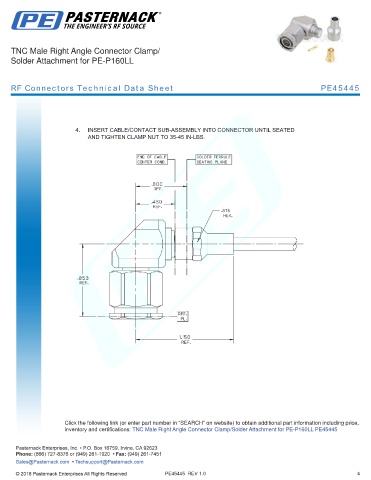

4. INSERT CABLE/CONTACT SUB-ASSEMBLY INTO CONNECTOR UNTIL SEATED
AND TIGHTEN CLAMP NUT TO 35-45 IN-LBS.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Clamp/Solder Attachment for PE-P160LL PE45445 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE45445 REV 1.0 4
