TNC Male Right Angle Connector Clamp/
Solder Attachment for PE-P160LL
RF Connectors Technical Data Sheet PE45445

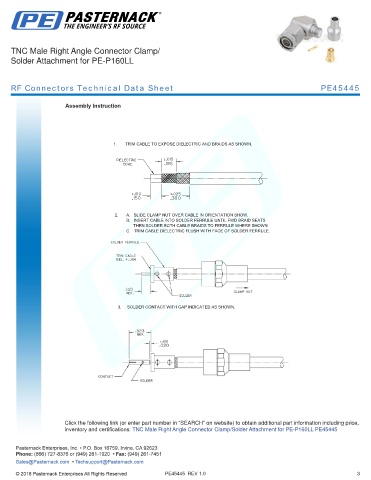

Assembly Instruction
1. TRIM CABLE TO EXPOSE DIELECTRIC AND BRAIDS AS SHOWN.
2. A. SLIDE CLAMP NUT OVER CABLE IN ORIENTATION SHOW.
B. INSERT CABLE INTO SOLDER FERRULE UNTIL FWD BRAID SEATS
THEN SOLDER BOTH CABLE BRAIDS TO FERRULE WHERE SHOWN.
C. TRIM CABLE DIELECTRIC FLUSH WITH FACE OF SOLDER FERRULE.
3. SOLDER CONTACT WITH GAP INDICATED AS SHOWN.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Clamp/Solder Attachment for PE-P160LL PE45445 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE45445 REV 1.0 3
