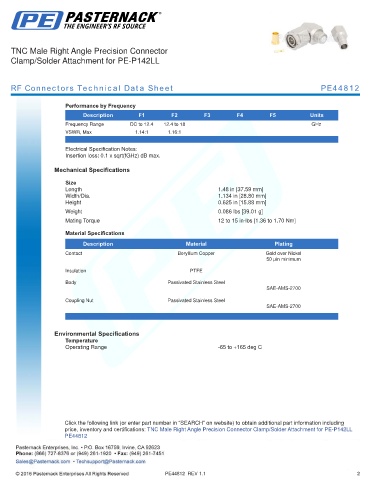

TNC Male Right Angle Precision Connector
Clamp/Solder Attachment for PE-P142LL

RF Connectors Technical Data Sheet PE44812

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 12.4 12.4 to 18 GHz
VSWR, Max 1.14:1 1.16:1
.
Electrical Specification Notes:
Insertion loss: 0.1 x sqrt(fGHz) dB max.

Mechanical Specifications

Size
Length 1.48 in [37.59 mm]
Width/Dia. 1.134 in [28.80 mm]
Height 0.625 in [15.88 mm]
.
Weight 0.086 lbs [39.01 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
Material Specifications

Description Material Plating
Contact Beryllium Copper Gold over Nickel
50 µin minimum
Insulation PTFE

Body Passivated Stainless Steel
SAE-AMS-2700
Coupling Nut Passivated Stainless Steel
SAE-AMS-2700

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Male Right Angle Precision Connector Clamp/Solder Attachment for PE-P142LL
PE44812
