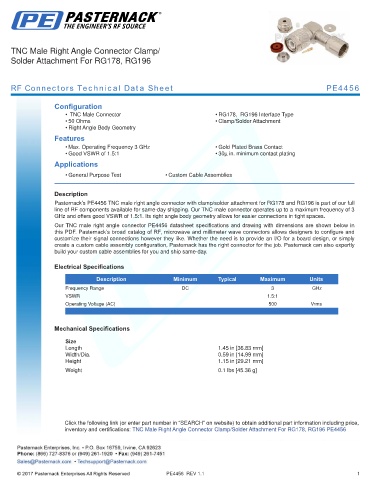

Page 138 - TNC to Double Banana RF Connector Datasheets

TNC Male Right Angle Connector Clamp/
Solder Attachment For RG178, RG196

RF Connectors Technical Data Sheet PE4456

Configuration
• TNC Male Connector • RG178, RG196 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30µ in. minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4456 TNC male right angle connector with clamp/solder attachment for RG178 and RG196 is part of our full
line of RF components available for same-day shipping. Our TNC male connector operates up to a maximum frequency of 3
GHz and offers good VSWR of 1.5:1. Its right angle body geometry allows for easier connections in tight spaces.
Our TNC male right angle connector PE4456 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.45 in [36.83 mm]
Width/Dia. 0.59 in [14.99 mm]
Height 1.15 in [29.21 mm]
.
Weight 0.1 lbs [45.36 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Clamp/Solder Attachment For RG178, RG196 PE4456

PE4456 REV 1.1 1
