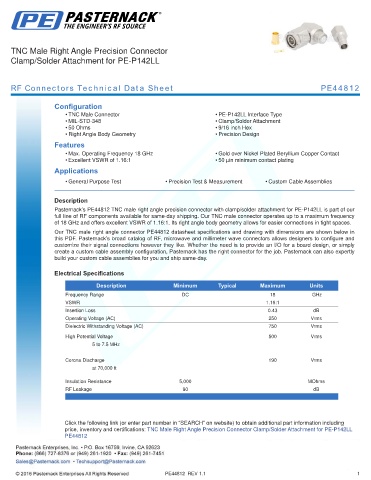

TNC Male Right Angle Precision Connector
Clamp/Solder Attachment for PE-P142LL

RF Connectors Technical Data Sheet PE44812

Configuration
• TNC Male Connector • PE-P142LL Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • 9/16 inch Hex
• Right Angle Body Geometry • Precision Design
Features
• Max. Operating Frequency 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • 50 µin minimum contact plating
Applications

• General Purpose Test • Precision Test & Measurement • Custom Cable Assemblies
.
Description
Pasternack’s PE44812 TNC male right angle precision connector with clamp/solder attachment for PE-P142LL is part of our
full line of RF components available for same-day shipping. Our TNC male connector operates up to a maximum frequency
of 18 GHz and offers excellent VSWR of 1.16:1. Its right angle body geometry allows for easier connections in tight spaces.
Our TNC male right angle connector PE44812 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
Insertion Loss 0.43 dB
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
High Potential Voltage 500 Vrms
5 to 7.5 MHz

Corona Discharge 190 Vrms
at 70,000 ft

Insulation Resistance 5,000 MOhms
RF Leakage 90 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Male Right Angle Precision Connector Clamp/Solder Attachment for PE-P142LL
PE44812

PE44812 REV 1.1 1
