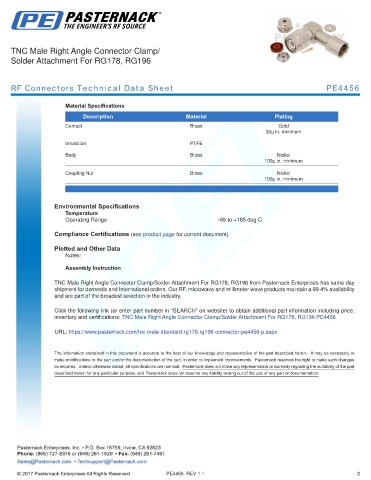

TNC Male Right Angle Connector Clamp/
Solder Attachment For RG178, RG196

RF Connectors Technical Data Sheet PE4456

Material Specifications
Description Material Plating
Contact Brass Gold
30µ in. minimum

Insulation PTFE
Body Brass Nickel
100µ in. minimum

Coupling Nut Brass Nickel
100µ in. minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Assembly Instruction

TNC Male Right Angle Connector Clamp/Solder Attachment For RG178, RG196 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Clamp/Solder Attachment For RG178, RG196 PE4456

URL: https://www.pasternack.com/tnc-male-standard-rg178-rg196-connector-pe4456-p.aspx

PE4456 REV 1.1 2
