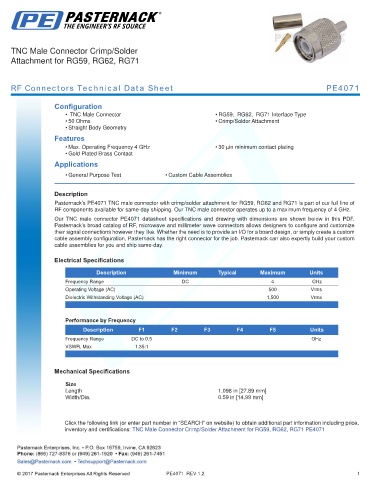

TNC Male Connector Crimp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4071

Configuration
• TNC Male Connector • RG59, RG62, RG71 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4071 TNC male connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our full line of
RF components available for same-day shipping. Our TNC male connector operates up to a maximum frequency of 4 GHz.
Our TNC male connector PE4071 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 0.5 GHz
VSWR, Max 1.35:1
.

Mechanical Specifications
Size
Length 1.098 in [27.89 mm]
Width/Dia. 0.59 in [14.99 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Crimp/Solder Attachment for RG59, RG62, RG71 PE4071
