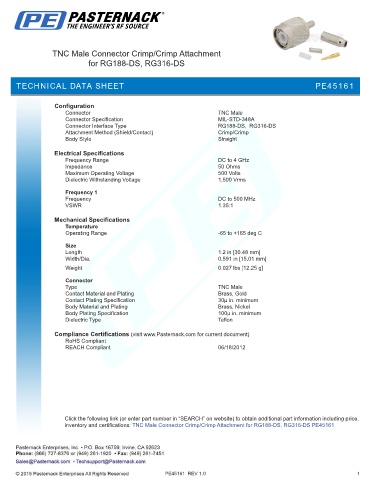

TNC Male Connector Crimp/Crimp Attachment
for RG188-DS, RG316-DS

TECHNICAL DATA SHEET PE45161

Configuration
Connector TNC Male
Connector Specification MIL-STD-348A
Connector Interface Type RG188-DS, RG316-DS
Attachment Method (Shield/Contact) Crimp/Crimp
Body Style Straight

Electrical Specifications
Frequency Range DC to 4 GHz
Impedance 50 Ohms
Maximum Operating Voltage 500 Volts
Dielectric Withstanding Voltage 1,500 Vrms

Frequency 1
Frequency DC to 500 MHz
VSWR 1.35:1
Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C

Size
Length 1.2 in [30.48 mm]
Width/Dia. 0.591 in [15.01 mm]
.
Weight 0.027 lbs [12.25 g]
Connector
Type TNC Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Crimp/Crimp Attachment for RG188-DS, RG316-DS PE45161

PE45161 REV 1.0 1
