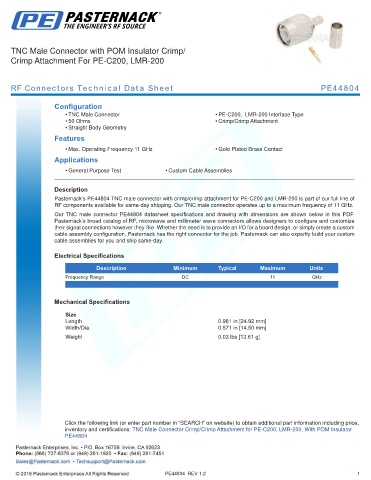

TNC Male Connector with POM Insulator Crimp/
Crimp Attachment For PE-C200, LMR-200

RF Connectors Technical Data Sheet PE44804

Configuration
• TNC Male Connector • PE-C200, LMR-200 Interface Type
• 50 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44804 TNC male connector with crimp/crimp attachment for PE-C200 and LMR-200 is part of our full line of
RF components available for same-day shipping. Our TNC male connector operates up to a maximum frequency of 11 GHz.
Our TNC male connector PE44804 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 0.981 in [24.92 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.03 lbs [13.61 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Crimp/Crimp Attachment for PE-C200, LMR-200, With POM Insulator
PE44804

PE44804 REV 1.2 1
