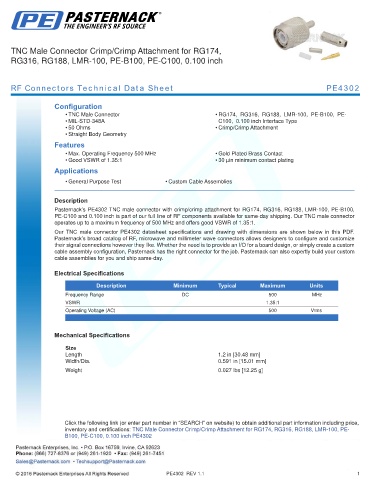

TNC Male Connector Crimp/Crimp Attachment for RG174,
RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

RF Connectors Technical Data Sheet PE4302

Configuration
• TNC Male Connector • RG174, RG316, RG188, LMR-100, PE-B100, PE-
• MIL-STD-348A C100, 0.100 inch Interface Type
• 50 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 500 MHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4302 TNC male connector with crimp/crimp attachment for RG174, RG316, RG188, LMR-100, PE-B100,
PE-C100 and 0.100 inch is part of our full line of RF components available for same-day shipping. Our TNC male connector
operates up to a maximum frequency of 500 MHz and offers good VSWR of 1.35:1.
Our TNC male connector PE4302 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.2 in [30.48 mm]
Width/Dia. 0.591 in [15.01 mm]
.
Weight 0.027 lbs [12.25 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Crimp/Crimp Attachment for RG174, RG316, RG188, LMR-100, PE-
B100, PE-C100, 0.100 inch PE4302

PE4302 REV 1.1 1
