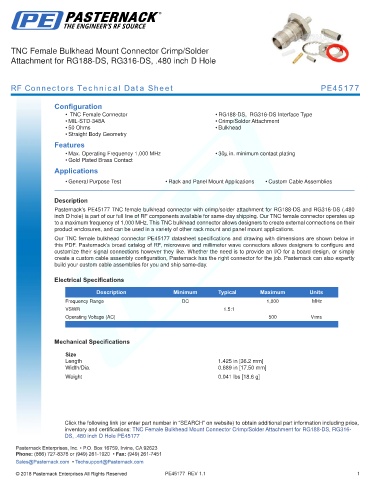

TNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG188-DS, RG316-DS, .480 inch D Hole

RF Connectors Technical Data Sheet PE45177

Configuration
• TNC Female Connector • RG188-DS, RG316-DS Interface Type
• MIL-STD-348A • Crimp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • 30µ in. minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE45177 TNC female bulkhead connector with crimp/solder attachment for RG188-DS and RG316-DS (.480
inch D hole) is part of our full line of RF components available for same-day shipping. Our TNC female connector operates up
to a maximum frequency of 1,000 MHz. This TNC bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our TNC female bulkhead connector PE45177 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.425 in [36.2 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.041 lbs [18.6 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG188-DS, RG316- -
DS, .480 inch D Hole PE45177 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45177 REV 1.1 1
