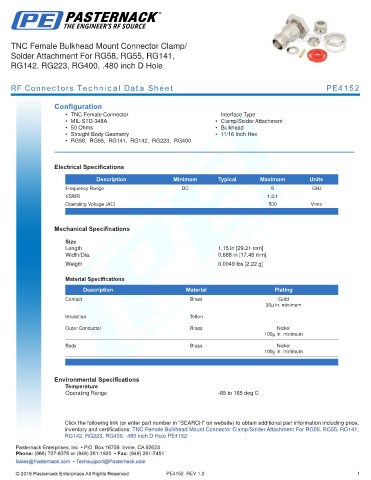

TNC Female Bulkhead Mount Connector Clamp/
Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400, .480 inch D Hole

RF Connectors Technical Data Sheet PE4152

Configuration
• TNC Female Connector Interface Type
• MIL-STD-348A • Clamp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry • 11/16 Inch Hex
• RG58, RG55, RG141, RG142, RG223, RG400

.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.15 in [29.21 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.0049 lbs [2.22 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30µ in. minimum

Insulation Teflon
Outer Conductor Brass Nickel
100µ in. minimum

Body Brass Nickel
100µ in. minimum
.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Clamp/Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400, .480 inch D Hole PE4152

PE4152 REV 1.2 1
