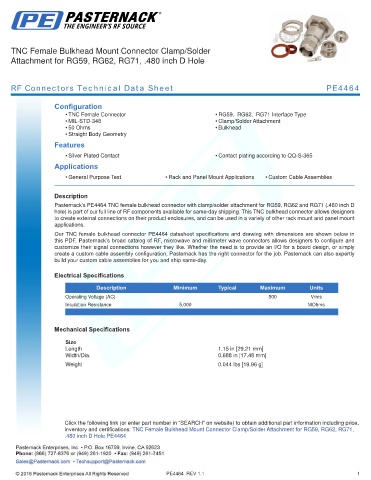

TNC Female Bulkhead Mount Connector Clamp/Solder
Attachment for RG59, RG62, RG71, .480 inch D Hole

RF Connectors Technical Data Sheet PE4464

Configuration
• TNC Female Connector • RG59, RG62, RG71 Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4464 TNC female bulkhead connector with clamp/solder attachment for RG59, RG62 and RG71 (.480 inch D
hole) is part of our full line of RF components available for same-day shipping. This TNC bulkhead connector allows designers
to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our TNC female bulkhead connector PE4464 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.15 in [29.21 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.044 lbs [19.96 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Clamp/Solder Attachment for RG59, RG62, RG71,
.480 inch D Hole PE4464

PE4464 REV 1.1 1
