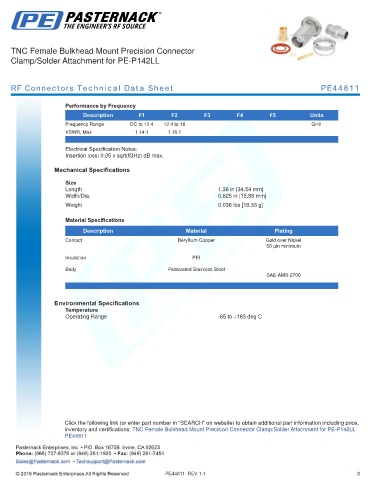

TNC Female Bulkhead Mount Precision Connector
Clamp/Solder Attachment for PE-P142LL

RF Connectors Technical Data Sheet PE44811

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 12.4 12.4 to 18 GHz
VSWR, Max 1.14:1 1.16:1
.
Electrical Specification Notes:
Insertion loss: 0.05 x sqrt(fGHz) dB max.

Mechanical Specifications

Size
Length 1.36 in [34.54 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.036 lbs [16.33 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
50 µin minimum
Insulation PEI

Body Passivated Stainless Steel
SAE-AMS-2700
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Precision Connector Clamp/Solder Attachment for PE-P142LL
PE44811
