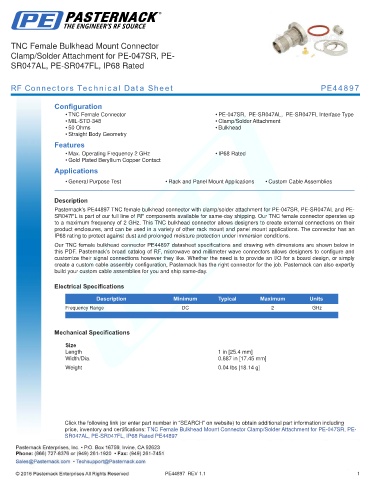

TNC Female Bulkhead Mount Connector
     Clamp/Solder Attachment for PE-047SR, PE-
     SR047AL, PE-SR047FL, IP68 Rated



     RF Connectors Technical Data Sheet                                                                    PE44897


                   Configuration
                       • TNC Female Connector                           • PE-047SR,  PE-SR047AL,  PE-SR047FL Interface Type
                       • MIL-STD-348                                    • Clamp/Solder Attachment
                       • 50 Ohms                                        • Bulkhead
                       • Straight Body Geometry
                   Features
                       • Max. Operating Frequency 2 GHz                 • IP68 Rated
                       • Gold Plated Beryllium Copper Contact
                   Applications

                       • General Purpose Test           • Rack and Panel Mount Applications   • Custom Cable Assemblies
                   .
                   Description
                   Pasternack’s PE44897 TNC female bulkhead connector with clamp/solder attachment for PE-047SR, PE-SR047AL and PE-
                   SR047FL is part of our full line of RF components available for same-day shipping. Our TNC female connector operates up
                   to a maximum frequency of 2 GHz. This TNC bulkhead connector allows designers to create external connections on their
                   product enclosures, and can be used in a variety of other rack mount and panel mount applications. The connector has an
                   IP68 rating to protect against dust and prolonged moisture protection under immersion conditions.
                   Our TNC female bulkhead connector PE44897 datasheet specifications and drawing with dimensions are shown below in
                   this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
                   customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
                   create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
                   build your custom cable assemblies for you and ship same-day.

                   Electrical Specifications

                                 Description              Minimum        Typical       Maximum         Units
                       Frequency Range                       DC                            2             GHz
                       .


                   Mechanical Specifications
                       Size
                       Length                                            1 in [25.4 mm]
                       Width/Dia.                                        0.687 in [17.45 mm]
                       .
                       Weight                                            0.04 lbs [18.14 g]
                       .








                      Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
                      price, inventory and certifications: TNC Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-047SR, PE-
                      SR047AL, PE-SR047FL, IP68 Rated PE44897






                                                       PE44897  REV 1.1                                                1
