TNC Female Bulkhead Mount Connector Clamp/
Solder Attachment for PE-P160LL

RF Connectors
Technical Data Sheet PE45444

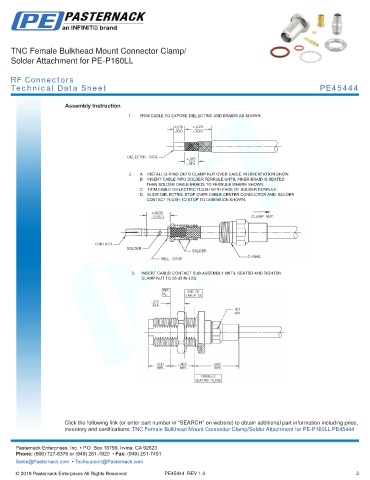

Assembly Instruction
1. TRIM CABLE TO EXPOSE DIELECTRIC AND BRAIDS AS SHOWN.

2. A. INSTALL O-RING ONTO CLAMP NUT OVER CABLE IN ORIENTATION SHOW.
B. INSERT CABLE INTO SOLDER FERRULE UNTIL INNER BRAID IS SEATED
THEN SOLDER CABLE BRAIDS TO FERRULE WHERE SHOWN.
C. TRIM CABLE DIELECTRIC FLUSH WITH FACE OF SOLDER FERRULE.
D. SLIDE DIELECTRIC STOP OVER CABLE CENTER CONDUCTOR AND SOLDER
CONTACT FLUSH TO STOP TO DIMENSION SHOWN.

3. INSERT CABLE/ CONTACT SUB-ASSEMBLY UNTIL SEATED AND TIGHTEN
CLAMP NUT TO 25-35 IN-LBS.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-P160LL PE45444 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
