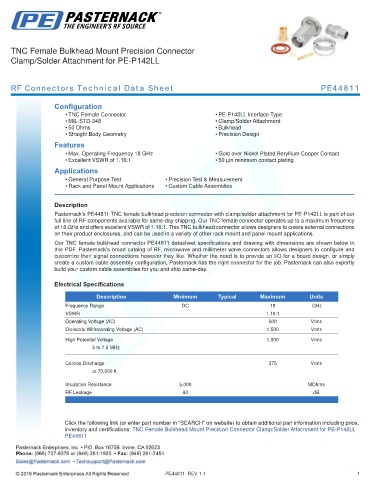

TNC Female Bulkhead Mount Precision Connector
Clamp/Solder Attachment for PE-P142LL

RF Connectors Technical Data Sheet PE44811

Configuration
• TNC Female Connector • PE-P142LL Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry • Precision Design
Features
• Max. Operating Frequency 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • 50 µin minimum contact plating
Applications
• General Purpose Test • Precision Test & Measurement
• Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44811 TNC female bulkhead precision connector with clamp/solder attachment for PE-P142LL is part of our
full line of RF components available for same-day shipping. Our TNC female connector operates up to a maximum frequency
of 18 GHz and offers excellent VSWR of 1.16:1. This TNC bulkhead connector allows designers to create external connections
on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our TNC female bulkhead connector PE44811 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
High Potential Voltage 1,000 Vrms
5 to 7.5 MHz

Corona Discharge 375 Vrms
at 70,000 ft

Insulation Resistance 5,000 MOhms
RF Leakage 90 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Bulkhead Mount Precision Connector Clamp/Solder Attachment for PE-P142LL
PE44811
