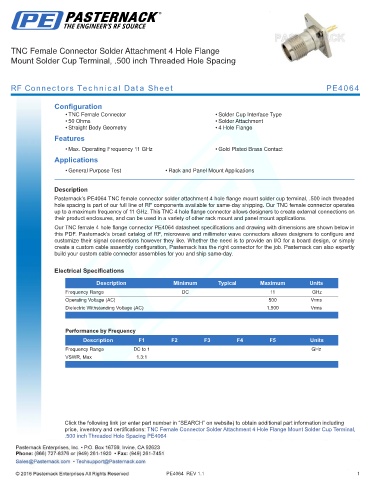

TNC Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing

RF Connectors Technical Data Sheet PE4064

Configuration
• TNC Female Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4064 TNC female connector solder attachment 4 hole flange mount solder cup terminal, .500 inch threaded
hole spacing is part of our full line of RF components available for same-day shipping. Our TNC female connector operates
up to a maximum frequency of 11 GHz. This TNC 4 hole flange connector allows designers to create external connections on
their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our TNC female 4 hole flange connector PE4064 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 GHz
VSWR, Max 1.3:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal,
.500 inch Threaded Hole Spacing PE4064

PE4064 REV 1.1 1
