TNC Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .500 inch Hole Spacing

RF Connectors

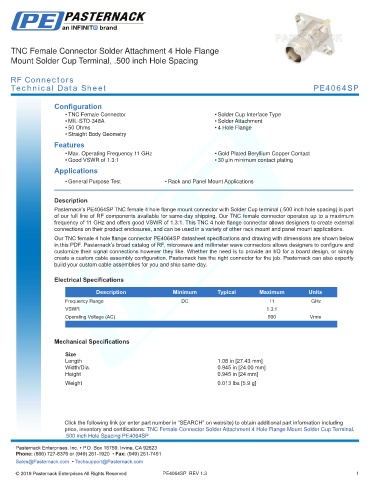

Technical Data Sheet PE4064SP

Configuration
• TNC Female Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Beryllium Copper Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4064SP TNC female 4 hole flange mount connector with Solder Cup terminal (.500 inch hole spacing) is part
of our full line of RF components available for same-day shipping. Our TNC female connector operates up to a maximum
frequency of 11 GHz and offers good VSWR of 1.3:1. This TNC 4 hole flange connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our TNC female 4 hole flange connector PE4064SP datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.08 in [27.43 mm]
Width/Dia. 0.945 in [24.00 mm]
Height 0.945 in [24 mm]
.
Weight 0.013 lbs [5.9 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: TNC Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal,
-
.500 inch Hole Spacing PE4064SP Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4064SP REV 1.3 1
