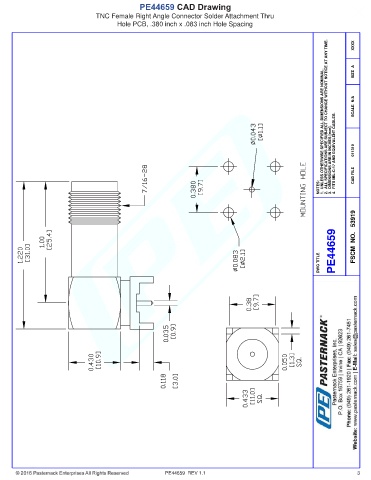

PE44659 CAD Drawing
TNC Female Right Angle Connector Solder Attachment Thru
Hole PCB, .380 inch x .083 inch Hole Spacing
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 011310
NOTES: CAD FILE
PE44659 FSCM NO. 53919
DWG TITLE
PE44659 REV 1.1 3
