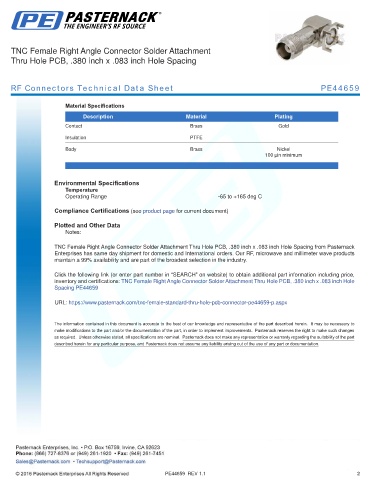

TNC Female Right Angle Connector Solder Attachment
Thru Hole PCB, .380 inch x .083 inch Hole Spacing

RF Connectors Technical Data Sheet PE44659

Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

TNC Female Right Angle Connector Solder Attachment Thru Hole PCB, .380 inch x .083 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Right Angle Connector Solder Attachment Thru Hole PCB, .380 inch x .083 inch Hole
Spacing PE44659

URL: https://www.pasternack.com/tnc-female-standard-thru-hole-pcb-connector-pe44659-p.aspx

PE44659 REV 1.1 2
