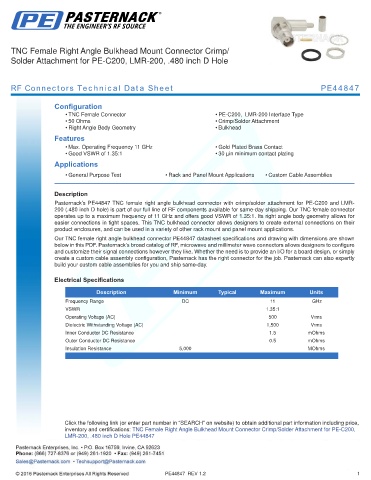

TNC Female Right Angle Bulkhead Mount Connector Crimp/
Solder Attachment for PE-C200, LMR-200, .480 inch D Hole

RF Connectors Technical Data Sheet PE44847

Configuration
• TNC Female Connector • PE-C200, LMR-200 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry • Bulkhead
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44847 TNC female right angle bulkhead connector with crimp/solder attachment for PE-C200 and LMR-
200 (.480 inch D hole) is part of our full line of RF components available for same-day shipping. Our TNC female connector
operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.35:1. Its right angle body geometry allows for
easier connections in tight spaces. This TNC bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our TNC female right angle bulkhead connector PE44847 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 0.5 mOhms
Insulation Resistance 5,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Right Angle Bulkhead Mount Connector Crimp/Solder Attachment for PE-C200,
LMR-200, .480 inch D Hole PE44847

PE44847 REV 1.2 1
