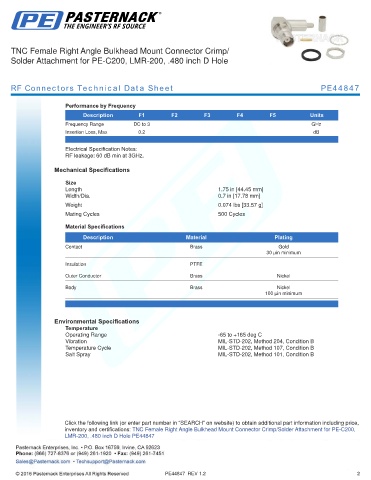

TNC Female Right Angle Bulkhead Mount Connector Crimp/
Solder Attachment for PE-C200, LMR-200, .480 inch D Hole
RF Connectors Technical Data Sheet PE44847
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 GHz
Insertion Loss, Max 0.2 dB
.
Electrical Specification Notes:
RF leakage: 60 dB min at 3GHz.
Mechanical Specifications
Size
Length 1.75 in [44.45 mm]
Width/Dia. 0.7 in [17.78 mm]
.
Weight 0.074 lbs [33.57 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Outer Conductor Brass Nickel
Body Brass Nickel
100 µin minimum
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Vibration MIL-STD-202, Method 204, Condition B
Temperature Cycle MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Right Angle Bulkhead Mount Connector Crimp/Solder Attachment for PE-C200,
LMR-200, .480 inch D Hole PE44847
PE44847 REV 1.2 2
