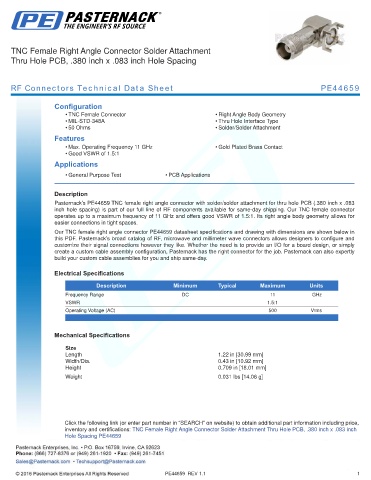

TNC Female Right Angle Connector Solder Attachment
Thru Hole PCB, .380 inch x .083 inch Hole Spacing

RF Connectors Technical Data Sheet PE44659

Configuration
• TNC Female Connector • Right Angle Body Geometry
• MIL-STD-348A • Thru Hole Interface Type
• 50 Ohms • Solder/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44659 TNC female right angle connector with solder/solder attachment for thru hole PCB (.380 inch x .083
inch hole spacing) is part of our full line of RF components available for same-day shipping. Our TNC female connector
operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.5:1. Its right angle body geometry allows for
easier connections in tight spaces.
Our TNC female right angle connector PE44659 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.22 in [30.99 mm]
Width/Dia. 0.43 in [10.92 mm]
Height 0.709 in [18.01 mm]
.
Weight 0.031 lbs [14.06 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Right Angle Connector Solder Attachment Thru Hole PCB, .380 inch x .083 inch
Hole Spacing PE44659

PE44659 REV 1.1 1
