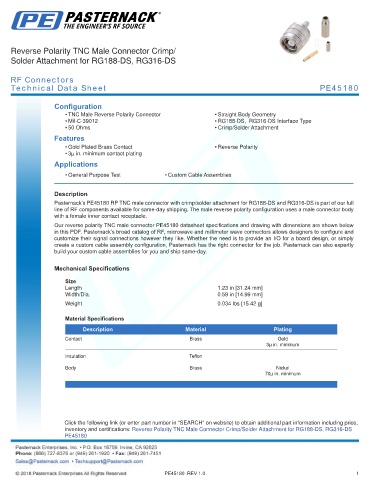

Reverse Polarity TNC Male Connector Crimp/
Solder Attachment for RG188-DS, RG316-DS

RF Connectors
Technical Data Sheet PE45180

Configuration
• TNC Male Reverse Polarity Connector • Straight Body Geometry
• Mil-C-39012 • RG188-DS, RG316-DS Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Brass Contact • Reverse Polarity
• 3µ in. minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45180 RP TNC male connector with crimp/solder attachment for RG188-DS and RG316-DS is part of our full
line of RF components available for same-day shipping. The male reverse polarity configuration uses a male connector body
with a female inner contact receptacle.
Our reverse polarity TNC male connector PE45180 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.23 in [31.24 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.034 lbs [15.42 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3µ in. minimum

Insulation Teflon
Body Brass Nickel
70µ in. minimum

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Reverse Polarity TNC Male Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
PE45180
