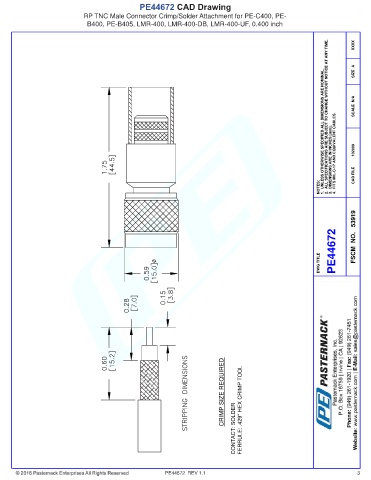

PE44672 CAD Drawing
RP TNC Male Connector Crimp/Solder Attachment for PE-C400, PE-
B400, PE-B405, LMR-400, LMR-400-DB, LMR-400-UF, 0.400 inch
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 102009
NOTES: CAD FILE
PE44672 FSCM NO. 53919
DWG TITLE
CRIMP SIZE REQUIRED
CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL
PE44672 REV 1.1 3
