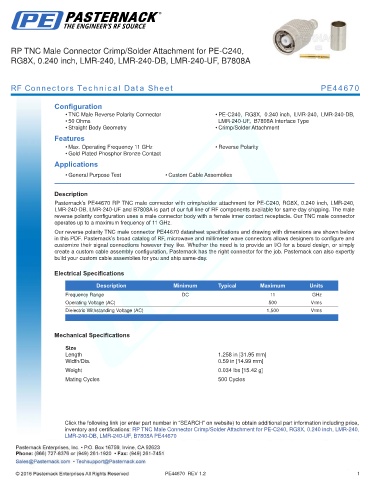

RP TNC Male Connector Crimp/Solder Attachment for PE-C240,
RG8X, 0.240 inch, LMR-240, LMR-240-DB, LMR-240-UF, B7808A
RF Connectors Technical Data Sheet PE44670
Configuration
• TNC Male Reverse Polarity Connector • PE-C240, RG8X, 0.240 inch, LMR-240, LMR-240-DB,
• 50 Ohms LMR-240-UF, B7808A Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Reverse Polarity
• Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44670 RP TNC male connector with crimp/solder attachment for PE-C240, RG8X, 0.240 inch, LMR-240,
LMR-240-DB, LMR-240-UF and B7808A is part of our full line of RF components available for same-day shipping. The male
reverse polarity configuration uses a male connector body with a female inner contact receptacle. Our TNC male connector
operates up to a maximum frequency of 11 GHz.
Our reverse polarity TNC male connector PE44670 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.
Mechanical Specifications
Size
Length 1.258 in [31.95 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.034 lbs [15.42 g]
.
Mating Cycles 500 Cycles
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Crimp/Solder Attachment for PE-C240, RG8X, 0.240 inch, LMR-240,
LMR-240-DB, LMR-240-UF, B7808A PE44670
PE44670 REV 1.2 1
