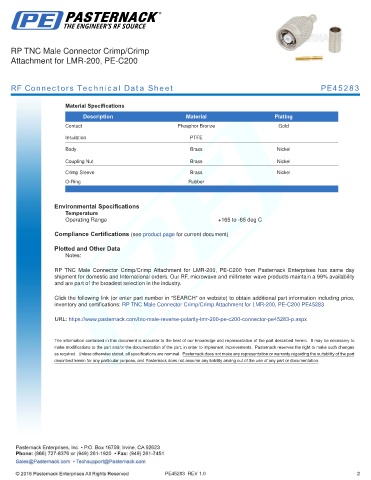

RP TNC Male Connector Crimp/Crimp
Attachment for LMR-200, PE-C200

RF Connectors Technical Data Sheet PE45283

Material Specifications
Description Material Plating
Contact Phosphor Bronze Gold

Insulation PTFE
Body Brass Nickel

Coupling Nut Brass Nickel
Crimp Sleeve Brass Nickel
O-Ring Rubber
.

Environmental Specifications
Temperature
Operating Range +165 to -65 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

RP TNC Male Connector Crimp/Crimp Attachment for LMR-200, PE-C200 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Crimp/Crimp Attachment for LMR-200, PE-C200 PE45283

URL: https://www.pasternack.com/tnc-male-reverse-polarity-lmr-200-pe-c200-connector-pe45283-p.aspx

PE45283 REV 1.0 2
